公司2005年最新推出全新HIMOD M系列,秉承系列模块化机房专用空调的全部优点,高精度恒温控制型弥漫式送风。

M series is launched in 2005. It has all of the advantages of our series modular room air-conditioninghigh precision temperature control type, and diffuse type air flow.


    弥漫式送风型号为S/MX XKA

Diffuse air flow model – S/MX XKA


Diffuse type air circulation in the computer room


Cold air from air conditioning is out in the floor plane flow. Based on the principle of fluid mechanics, the cold air is distributed in the middle and lower cabinet. The cabinet is formed around the "siege" of cold air, and the hot air rises relying on the "thermal" flow in the room. Computer cabinet at the bottom is sucked the cold air, forced ventilation device of a computer or the cabinet itself complete air circulation, the heated air is discharged by the top of cabinet.




    而对于上送风方式,弥漫式送风方式不需要风管,避免了房间的温度的不均匀的情况的发生 ,同时可以节能10%-20%,降低空调制冷量需求10%

Diffuse type air circulation in the computer room

Relative to the lower air supply, the diffuse type does not require overhead floor, while the heat load per unit area can be increased by 10%, and reduces the requirement of storey rooms, common room can be room.

The cabinet is surrounded by the cold air relative to the lower air supply, and it provides better cooling effect for the diffuse type.

But for the upper air supply, the diffuse type ventilation does not need wind pipe to avoid the inhomogeneous temperature of the room, and also can save energy up to 10%-20% and reduce air conditioning demand of 10%.



    单位面积热负荷提高10%,降低机房建筑层高要求,节省安装费用,节省运行费用多种冷却方式,包括风冷,水冷,乙二醇冷却,乙二醇自然冷却,冷冻水,双冷源等,配合用户室外的综合现场条件对冷却的要求,储液罐式冷凝器,可保证机组在环境温度低至-34.4℃都可正常运行,运用了大量环保节能技术,包括采用无环境污染的原材料和机组防腐涂料,大量采用可重复使用的部件,增强机组的可维护性,先进的微处理器具有顺序优先启动功能,使机组部件磨损平均,延长机组使用寿命,双制冷系统运行,节能且更加可靠,高效低能耗的压缩机 ,采用模糊逻辑控制绝对温度控制等先进调控技术,提高控制精度,降低能耗,延长机组使用寿命 ,先进的故障自动报警系统和开机自诊断功能,使诊断处理机组的问题更加快捷。

The advantage of diffuse type

The heat load per unit area was increased by 10%. The diffuse type reduces the height of building, saves the installation cost, and saves multiple cooling mode andoperating costs including air cooling, water cooling, ethylene glycol, ethylene glycol natural cooling, freezing water, double cold source. Cooperate with the general conditions of outside for the requirement of cooling, the liquid storage tank condenser can guarantee the normal operation of the unit achieving the low temperature to -34.4. The use of a large number of environmental protection and energy saving technologies includes the use of raw materials and the anticorrosive paint without environmental pollution, extensive use of reusable components, and enhanced unit maintainability. The advanced microprocessor has the priority of starting function, makes the unit parts wear on average, and prolongs the service life. Dual fluid refrigeration system increases the energy saving and is more reliable, high efficiency and low energy consumption. The compressor is used the "advanced control using fuzzy logic control" and "absolute temperature control" technology to improve the control precision, reducing energy consumption, prolonging the service life, automatic fault alarm system, and booting diagnosis function which makes the diagnostic problems more quickly.

应用的范围 Application

    * 电信交换机房  网管中心

* Communication room * Network center

    * 卫星控制中心  * IDC数据中心

Satellite control center * IDC data center

    * 动力机房    实验室

*Power room * Laboratory

    * 培训中心    标准室

*Training center * Standard room

 * 洁净室     工业控制中心

* Clean room * Industry control center

精密加工中心  * UPS机房和电池室

* Precision machine center * UPS room and battery room

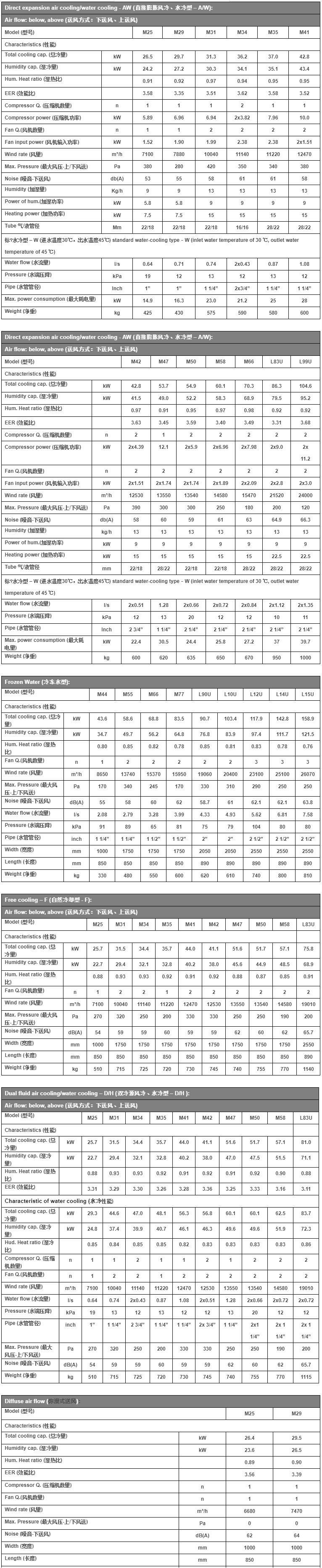

This chart is for reference only, the new design of components and structures for the unit will change depending on the actual situation.
